CP4 Bypass/Disaster Prevention Kit For 2011-2025 6.7 Powerstroke Diesel Ford F250/F350/F450 | SPELAB
---tab Description---

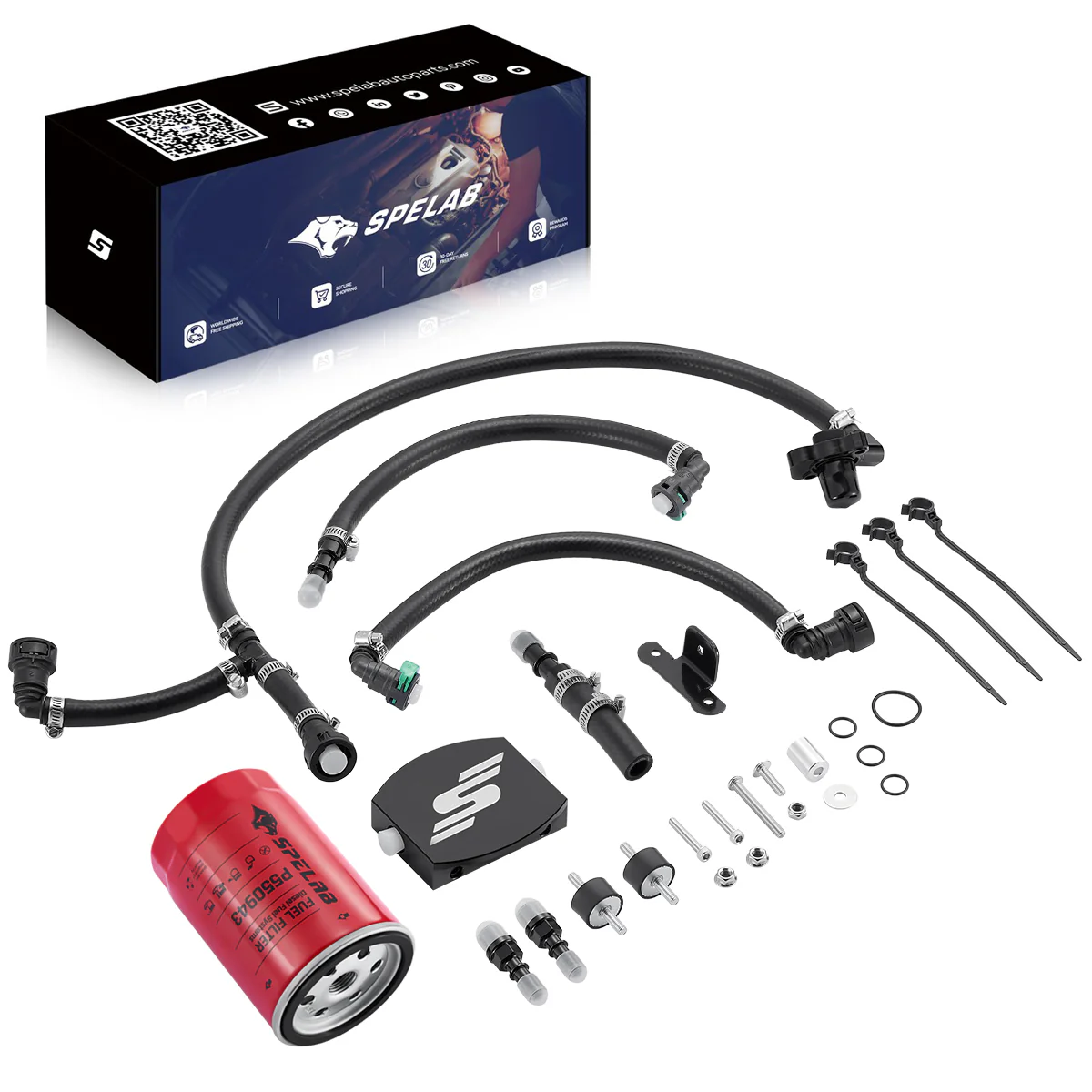

CP4 Disaster Prevention Kit for 2011–2025 6.7L Powerstroke
The CP4 Disaster Prevention Kit is designed to protect the entire high-pressure fuel system of your 2011–2025 Ford Super Duty 6.7L Powerstroke in the event of a CP4 pump failure.
By rerouting the CP4 pump’s return fuel through a dedicated high-efficiency filter before it returns to the fuel tank, the kit prevents harmful metal debris and contaminants from reaching the injectors, fuel rails, and lines—saving thousands in potential repair costs.
Fitment
- 2011–2025 Ford Super Duty 6.7L Powerstroke
Key Features
-
Comprehensive Protection
Prevents metal shavings and debris from contaminating injectors, rails, lines, and the tank in case of CP4 pump failure. -

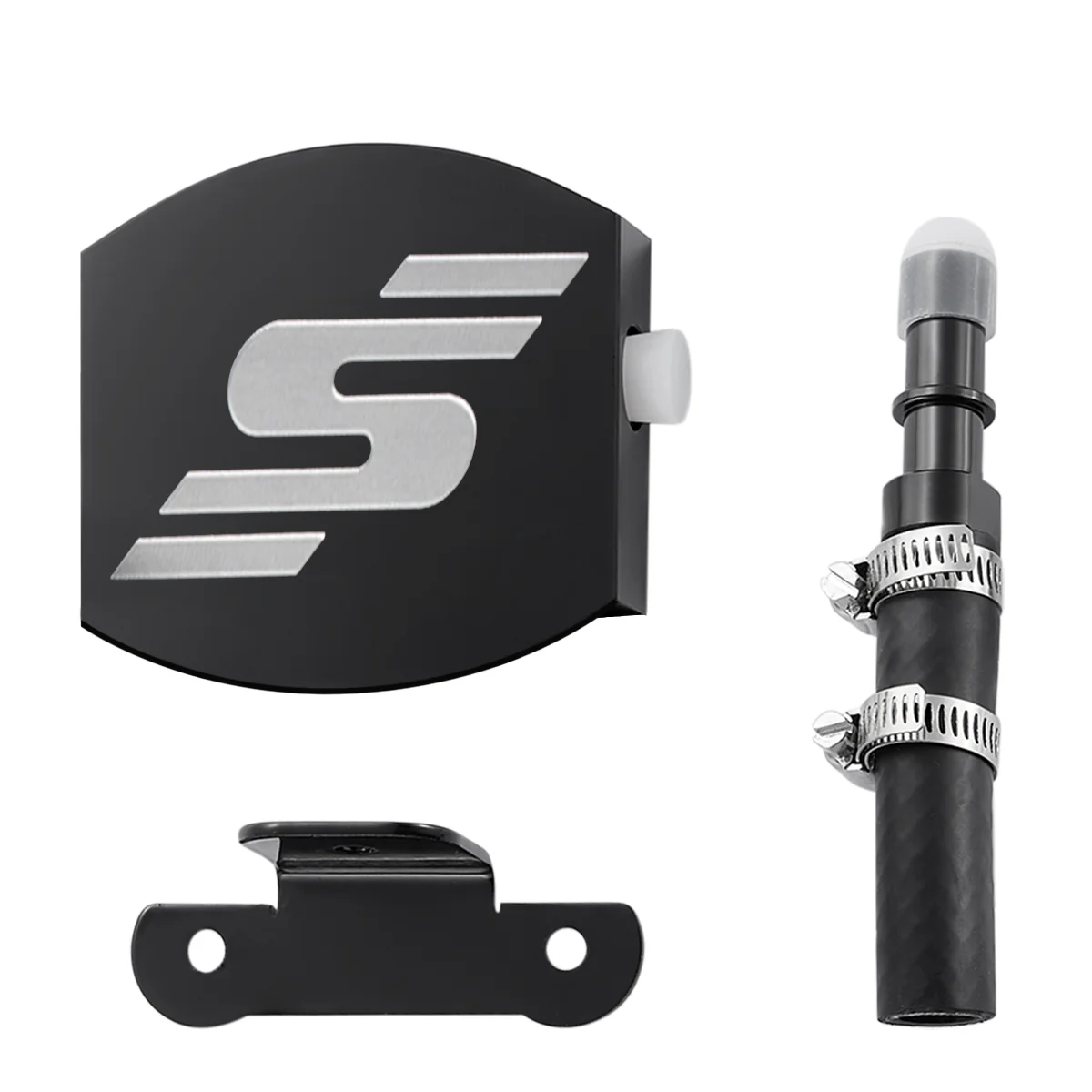

Bypass Block Design
CNC-machined aluminum with a metal ball seal (no threads), eliminating the risk of metal shavings. -

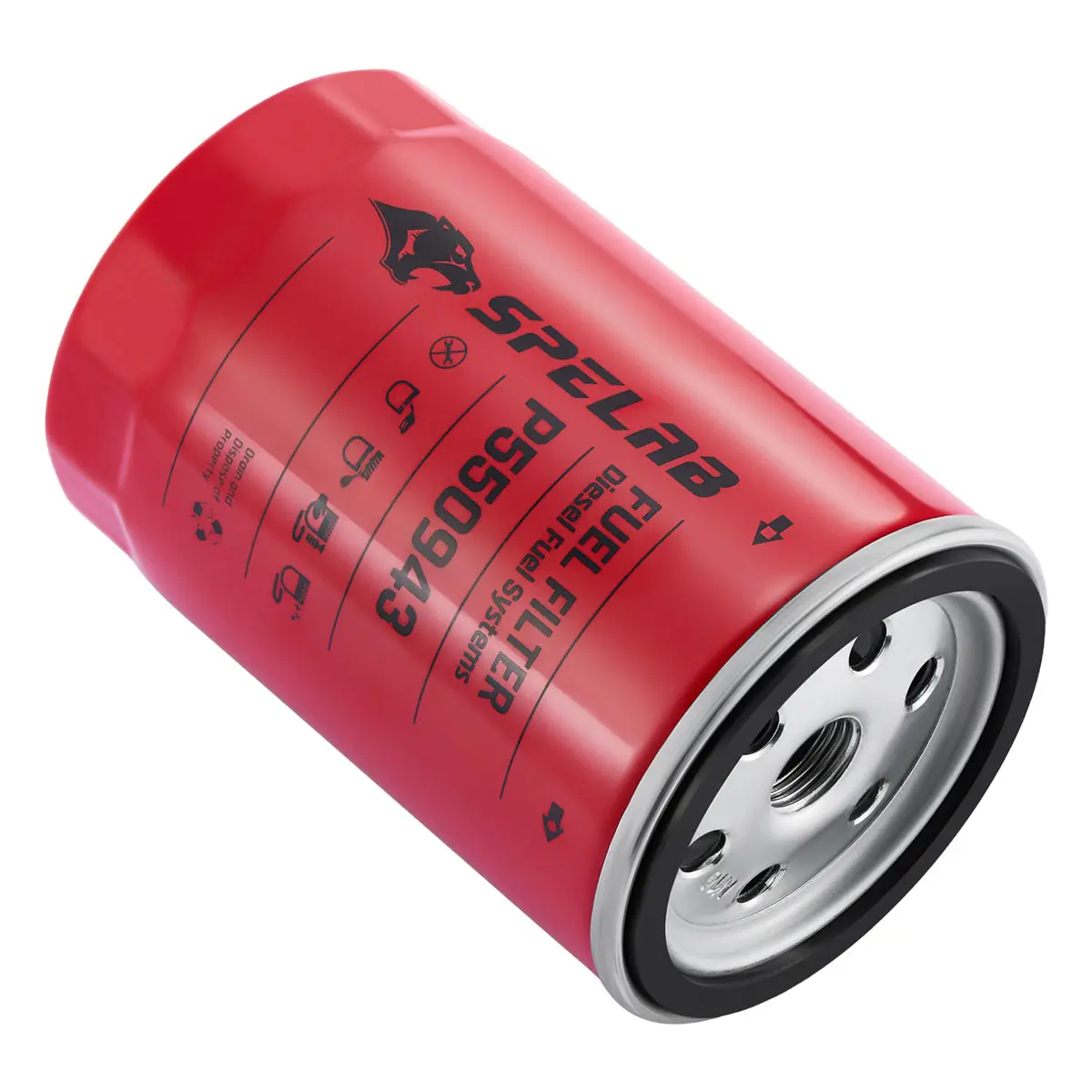

High-Efficiency Filtration
9-micron filter with 99% efficiency ensures clean fuel return, protecting downstream components. -

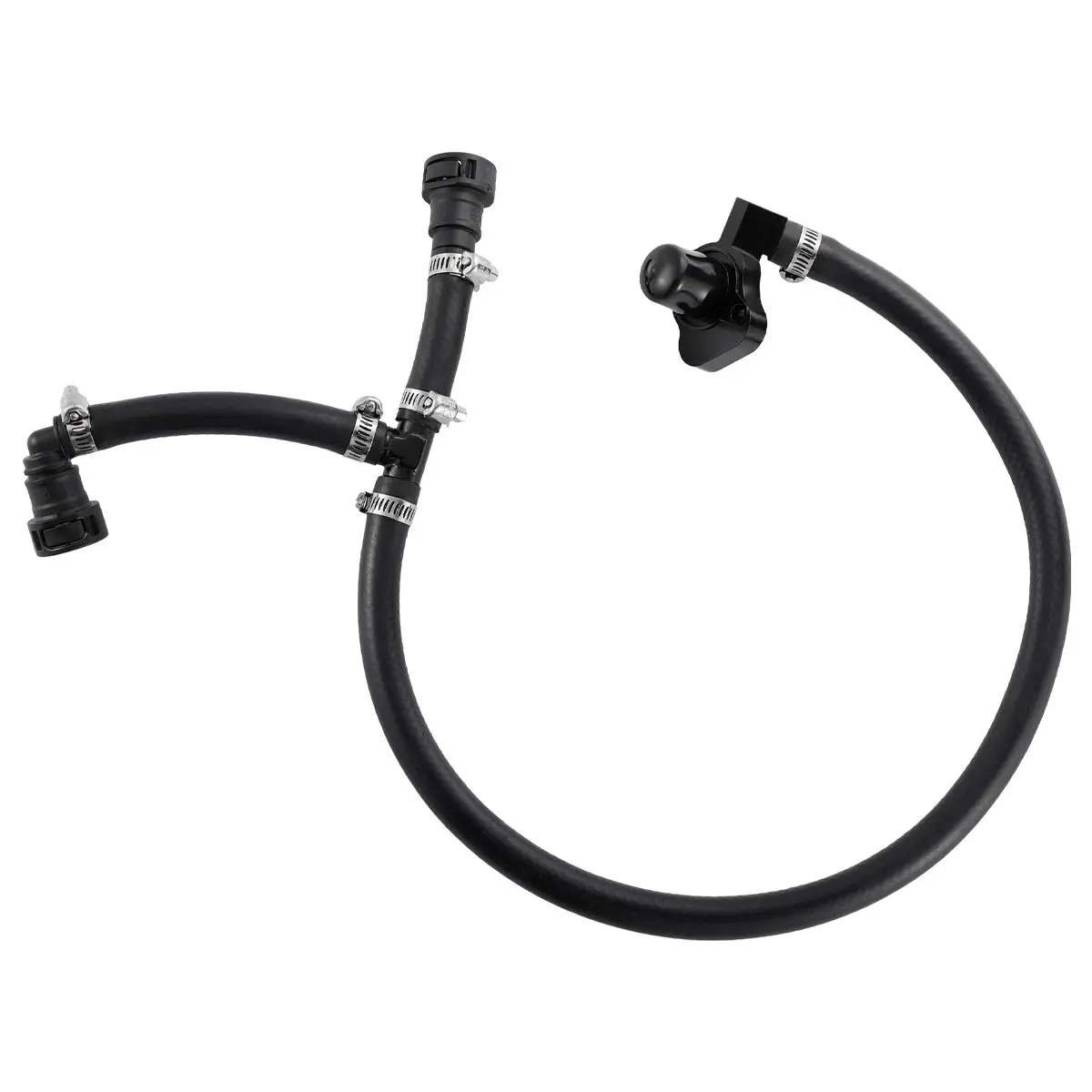

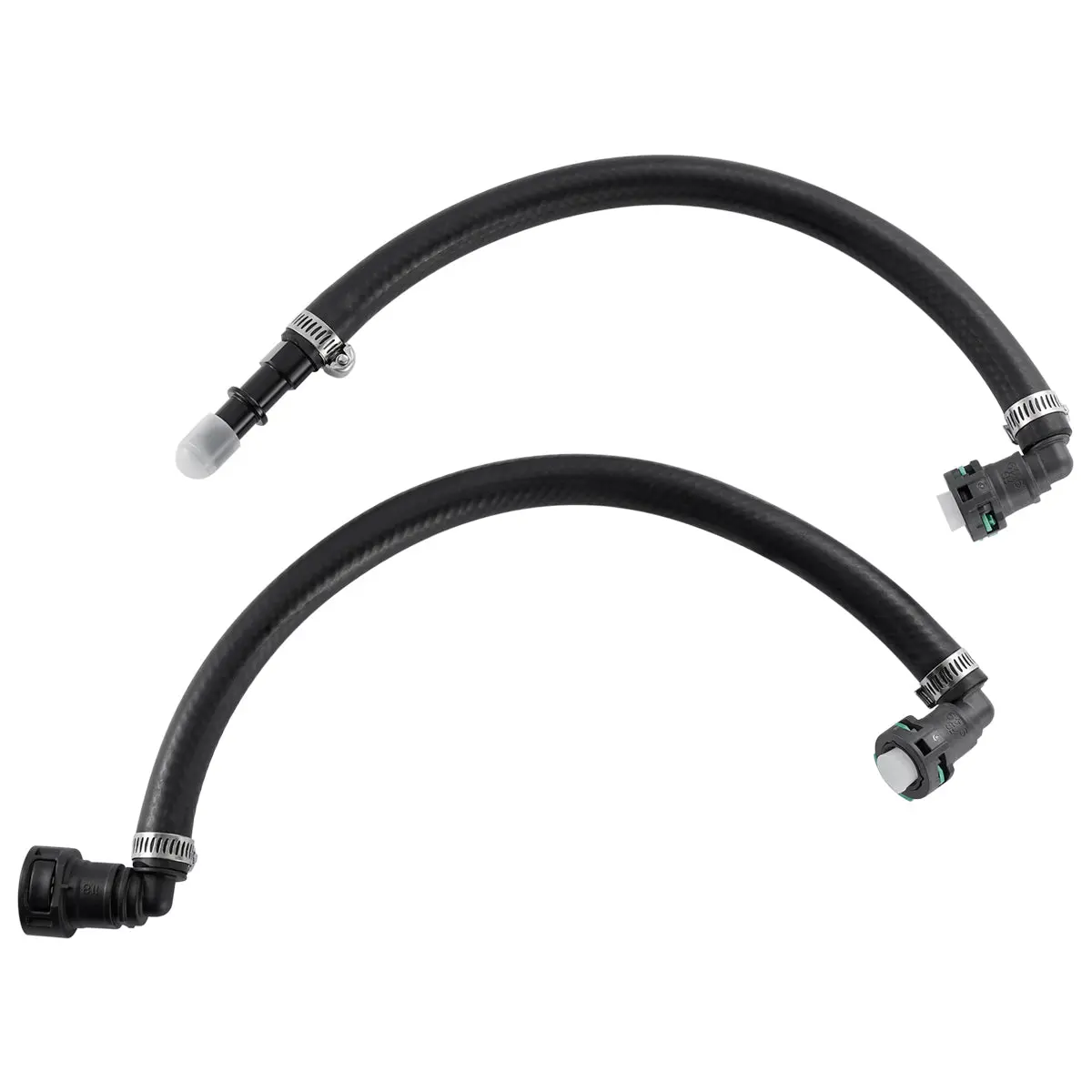

OE-Style Fuel Lines
Quick-connect design eliminates cutting of factory lines, reduces contamination risk, and simplifies installation. -
Durable Fuel Hoses
Rated for 350 PSI working pressure and 700 PSI burst pressure. -
Service-Friendly
Spin-on filter design makes filter replacement quick and easy. -
Wide Compatibility
Fits all 2011–2025 Ford Super Duty trucks with the 6.7L Powerstroke engine. -
Why Choose This Kit?
Without protection, a CP4 failure can contaminate the entire high-pressure fuel system—leading to repair bills exceeding $10,000. This prevention kit offers a cost-effective safeguard, ensuring that your Powerstroke stays reliable whether you tow, haul, or daily drive.
Product Specifications
| Material | Bypass Block: CNC-machined aluminum Fuel Lines: NBR rubber |
|---|---|
| Weight | 1.8 kg |
| Working Pressure | 350 PSI |
| Burst Pressure | 700 PSI |
Installation Instructions
Best For
- 2011–2025 Ford 6.7L Powerstroke Owners: A preventive upgrade for F250, F350, F450, and F550 trucks equipped with the CP4 fuel pump.
- Long-Term Truck Owners: Ideal for owners who plan to keep their Super Duty for years and want added protection against expensive fuel-system damage.
- Towing and Hauling Trucks: Useful for work trucks, tow rigs, and heavy-use diesel builds where fuel-system reliability matters under load.
- Daily-Driven Powerstroke Trucks: A smart safeguard for stock or lightly modified trucks that still face CP4 pump failure risk.
- Owners Worried About CP4 Failure: Helps reduce the chance of metal debris spreading through injectors, rails, fuel lines, and the tank if the pump fails.
- Preventive Maintenance Builds: Best installed before any CP4 failure symptoms appear, while the fuel system is still clean.
---tab FAQ---
Q: What does a CP4 disaster prevention kit actually do?
A: It helps contain metal debris if the CP4 high-pressure fuel pump starts shedding material. This kit reroutes the CP4 return fuel through a dedicated filter before that fuel goes back toward the tank, helping reduce the chance of contamination reaching injectors, rails, fuel lines, and other expensive fuel-system parts.
Q: Does this kit stop the CP4 pump from failing?
A: No. A CP4 bypass or disaster prevention kit does not prevent the pump itself from wearing out or failing. Its job is damage control: if the pump fails and creates metal debris, the kit helps limit how far that debris can spread through the fuel system.
Q: Will this kit fit my 6.7 Powerstroke?
A: This kit is listed for 2011-2025 Ford Super Duty trucks with the 6.7L Powerstroke, including F250, F350, F450, and applicable F550 models. Before ordering, confirm your truck's model year, engine, fuel-line layout, and high-pressure fuel pump configuration. This is especially important on later trucks, where pump and line configurations may vary by year, build, or service history.
Q4: What makes the SPELAB CP4 disaster prevention kit different from other options?
A: The SPELAB CP4 disaster prevention kit features a CNC-machined bypass block, OE-style quick-connect fuel lines, a service-friendly spin-on filter, and a high-efficiency 9-micron filtration setup. These design features help simplify installation, reduce contamination risk, and make long-term maintenance easier.
Q: Should I install this before the CP4 shows symptoms?
A: Yes. This kit makes the most sense as a preventive upgrade while the fuel system is still clean. If the CP4 has already failed and metal has already moved through the injectors, rails, lines, or tank, the truck needs proper fuel-system diagnosis and repair first.
Q: Can I install this kit after my CP4 pump has already failed?
A: Not as a shortcut repair. If the CP4 has already failed, inspect the full fuel system for metal contamination before installing new parts. The kit can be useful after the failed system is repaired, but it should not be treated as a fix for injectors, rails, lines, or tank contamination that already happened.
Q: Do I need this kit on a stock 6.7 Powerstroke?
A: A stock truck can still benefit from added protection because CP4 failure risk is not limited to tuned or heavily modified trucks. It is most useful for owners who tow, haul, daily drive, work the truck hard, or plan to keep the truck long term.
Q: Does installation require cutting factory fuel lines?
A: This kit is designed with OE-style quick-connect fuel lines to reduce cutting and keep installation cleaner. During installation, compare the supplied lines and fittings with the truck before disassembly, and follow the included instructions closely.
Q: How often should the spin-on filter be replaced?
A: Replace the spin-on filter as part of regular fuel-system maintenance, and sooner if you suspect contamination, poor fuel quality, water intrusion, or a CP4-related issue. If the truck is used for heavy towing, jobsite work, long idle time, or questionable fuel stops, inspect the filter more often.
Q: What symptoms can point to a CP4 or fuel-system problem?
A: Warning signs can include hard starts, long crank, low rail pressure codes, loss of power, rough running, metal debris in the fuel system, or a sudden no-start condition. Those symptoms are not proof of CP4 failure by themselves, so scan data, fuel pressure checks, and fuel filter inspection matter before replacing parts.
Q9: Which model years does this CP4 disaster prevention kit fit?
A: This CP4 disaster prevention kit fits the following Ford Super Duty 6.7L Powerstroke diesel model years:
- 2011 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2012 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2013 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2014 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2015 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2016 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2017 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2018 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2019 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2020 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2021 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2022 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2023 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2024 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
- 2025 Ford F250/F350/F450/F550 Super Duty 6.7L Powerstroke
For more years and models, view all of our CP4 disaster prevention kits.
For more years and models, view all of our CP4 disaster prevention kits.
Compatible models include: Ford F250, F350, F450, and F550 equipped with the 6.7L Powerstroke diesel engine.
